IPC120-2C2L-A2 — Fanless Industrial PC

Fanless 2× Gigabit Ethernet · 2× serial COM ports · -20~60°C wide temperature — compact 152×127×42.5 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

IPC120-2C2L-A2

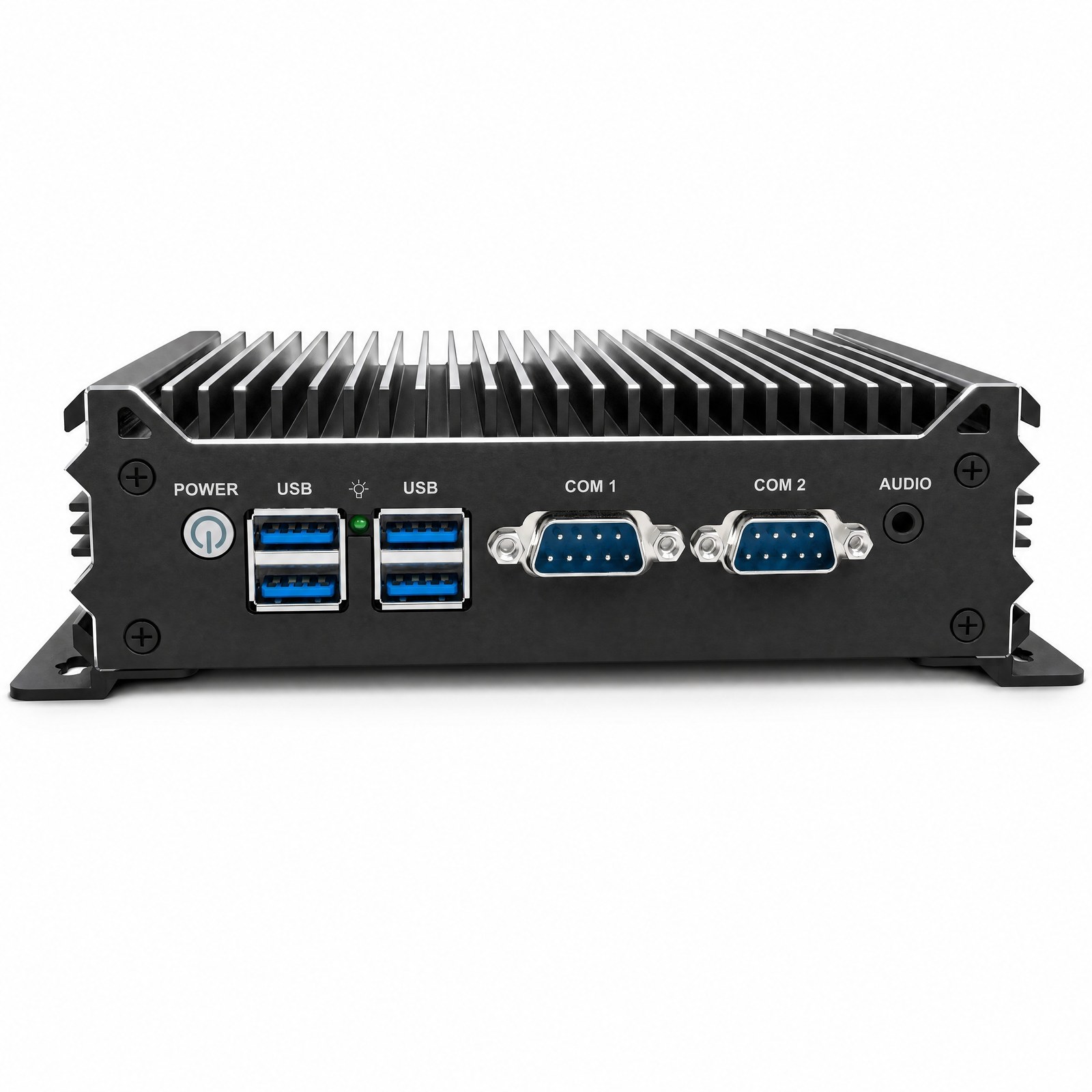

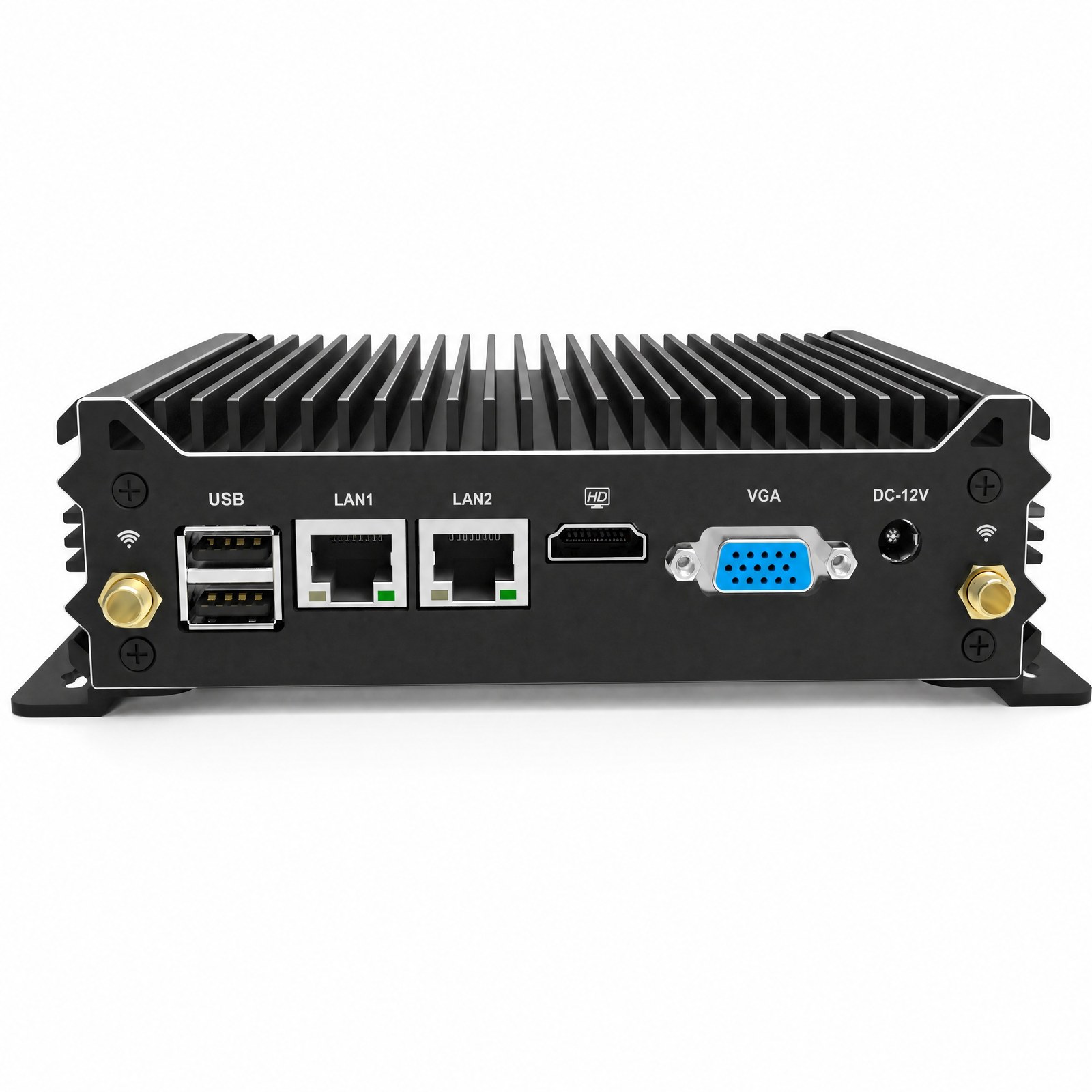

Front Rear
LAN Ports2*RTL8111H Gigabit Ethernet ports, support WOL, PXE boot
Memory1*DDR4-3200MHz Maximum support for 32GB
Dimensions152×127×42.5 mm
Temp Range-10℃~60℃ Storage: -20℃~70℃
Get a Quote →
Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

  • Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
  • 2*RTL8111H Gigabit Ethernet ports, — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
  • 2*DB9 — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
  • J4125：1*DDR4-2666MHz Maximum support for 16GB / N5095：1*DDR4-2933MHz Maximum support for 32GB / J6412/N95/N97/N100/N150：1*DDR4-3200MHz Maximum support for 32GB.
  • 1*VGA, 1*HDMI, support synchronous and asynchronous dual display — dual independent display support.
  • J4125/N5095：4*USB3.0，2*USB2.0 / J6412/N95/N97/N100/N150：4*USB3.1，2*USB2.0 for high-speed peripherals.

Specifications

Processor (CPU)Compatible with multiple Intel processors: J4125/N5095/J6412/N95/N97/N100/N150
System MemoryJ4125：1*DDR4-2666MHz Maximum support for 16GB / N5095：1*DDR4-2933MHz Maximum support for 32GB / J6412/N95/N97/N100/N150：1*DDR4-3200MHz Maximum support for 32GB
Storage / Drive BaysJ4125：1*MSATA 3.0 / N5095/J6412/N95/N97/N100/N150：1*M.2 Key-M 2280 (PCIE and SATA hard drive self-adaptation)
CoolingFanless ice thorn cooling
Supported OSWin10/Win11/Linux/Ubuntu
Ethernet (LAN)2*RTL8111H Gigabit Ethernet ports, support WOL, PXE boot
Serial Ports (COM)2*DB9 serial ports (default RS232, RS485 signal configurable via jumper)
USB PortsJ4125/N5095：4*USB3.0，2*USB2.0 / J6412/N95/N97/N100/N150：4*USB3.1，2*USB2.0
Display Output1*VGA, 1*HDMI, support synchronous and asynchronous dual display
Expansion Slots1*MiniPcie slot (supports half and full size cards), supports WIFI/4G modules
Power InputJ4125/N5095：DC 12V 55*25mm / N5095/J6412/N95/N97/N100/N150：DC 12V 55*25mm
Operating Temperature-10℃~60℃ Storage: -20℃~70℃
Dimensions (L×W×H)152*127*42.5 mm

Applications

  • PLC & Sensor Integration — serial ports for direct machine control.
  • Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
  • Digital Signage & Kiosk — compact size, silent operation, dual displays.
  • Network Security & NVR — reliable multi-LAN appliance platforms.

Built-to-Order Options

  • Memory: capacity configured at RFQ (see specifications for max).
  • Storage: M.2 NVMe / SATA SSD / mSATA capacity per RFQ.
  • Serial: COM ports factory-configured to RS485 / RS422 / TTL on request.
  • Wireless: Mini-PCIe / M.2 4G/5G and Wi-Fi + Bluetooth options.
  • OS: Windows 10/11, Ubuntu, Debian, CentOS pre-install available.

Request a Quote — IPC120-2C2L-A2

Our engineering team replies within 1 business day with FOB Shenzhen pricing and lead time.

Tell us your CPU, memory, storage and interface requirements. Every unit is built-to-order from our Shenzhen factory.

✔ Direct factory pricing & OEM/ODM support
✔ Windows / Linux pre-install available
✔ Sample testing before bulk orders
