IPC120-6L-A1 — Fanless Industrial PC

Fanless 6× Gigabit Ethernet · -20~60°C wide temperature — compact 152×127×42.5 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

IPC120-6L-A1

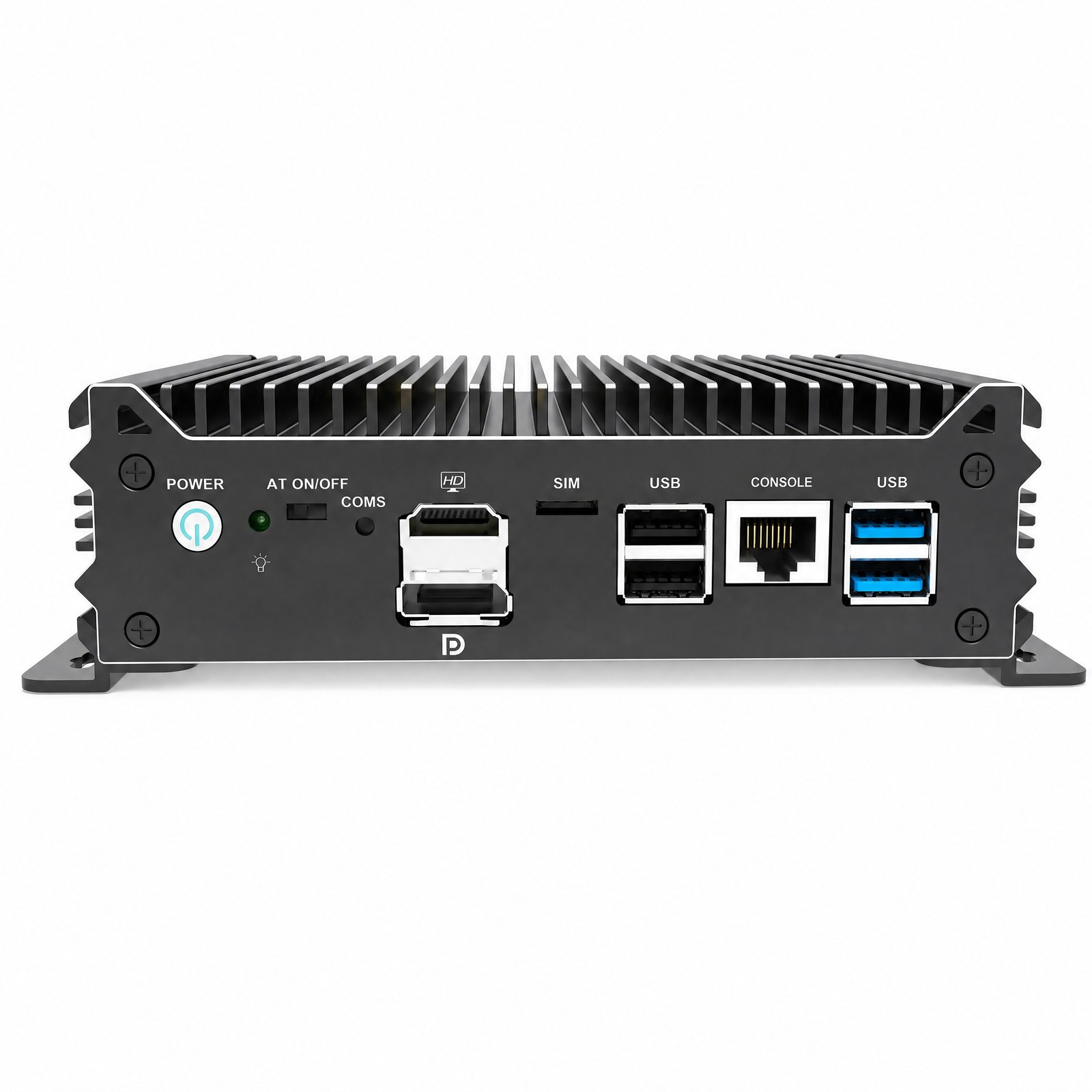

Front Rear
LAN PortsJ6412/N100/N150: 6*intel i226v Supports WOL and PXE boot
Memory1*D4-3200Mhz Supports up to 32GB
Dimensions152×127×42.5 mm
Temp RangeOperating temperature: -10℃~60℃
Get a Quote →
Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

  • Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
  • J6412/N100/N150: 6*intel i226v — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
  • 1* CISCO standard RS232 — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
  • 1*D4-3200Mhz Supports up to 32GB.
  • J6412: 1* HDMI+DP dual display interface (where DP supports 4K display) / N100/N150: 1* DP+HDMI dual display interface (both support 4K60HZ) — dual independent display support.
  • 2*USB 3.0+2*USB 2.0 for high-speed peripherals.

Specifications

Processor (CPU)Compatible with multiple Intel processors：J6412/N100/N150
System Memory1*D4-3200Mhz Supports up to 32GB
Storage / Drive Bays1*M.2 M Key (Adaptive to PCIEx1 and SATA3.0 hard drives)
CoolingFanless Ice Spike Cooling
Supported OSWin10/Linux/Ubuntu/Debian
Ethernet (LAN)J6412/N100/N150: 6*intel i226v Supports WOL and PXE boot
Serial Ports (COM)1* CISCO standard RS232 serial interface (default RS232, with optional support for RS485 through hardware adjustments)
USB Ports2*USB 3.0+2*USB 2.0
Display OutputJ6412: 1* HDMI+DP dual display interface (where DP supports 4K display) / N100/N150: 1* DP+HDMI dual display interface (both support 4K60HZ)
Expansion SlotsJ6412/N100/N150：1* Mini-PCIe slot, supporting 4G or WIFI module
Power InputDC 12V 55*25mm
Operating TemperatureOperating temperature: -10℃~60℃ / Storage temperature: -20℃~70℃
Dimensions (L×W×H)152*127*42.5 mm

Applications

  • Machine Vision & Multi-Camera — multiple GigE ports drive cameras without an extra switch.
  • PLC & Sensor Integration — serial ports for direct machine control.
  • Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
  • Digital Signage & Kiosk — compact size, silent operation, dual displays.
  • Network Security & NVR — reliable multi-LAN appliance platforms.

Built-to-Order Options

  • Memory: capacity configured at RFQ (see specifications for max).
  • Storage: M.2 NVMe / SATA SSD / mSATA capacity per RFQ.
  • Serial: COM ports factory-configured to RS485 / RS422 / TTL on request.
  • Wireless: Mini-PCIe / M.2 4G/5G and Wi-Fi + Bluetooth options.
  • OS: Windows 10/11, Ubuntu, Debian, CentOS pre-install available.

Request a Quote — IPC120-6L-A1

Our engineering team replies within 1 business day with FOB Shenzhen pricing and lead time.

Tell us your CPU, memory, storage and interface requirements. Every unit is built-to-order from our Shenzhen factory.

✔ Direct factory pricing & OEM/ODM support
✔ Windows / Linux pre-install available
✔ Sample testing before bulk orders
