IPC121-2L4C-A1 — Fanless Industrial PC

Fanless 2× Gigabit Ethernet · 4× serial COM ports · -20~60°C wide temperature — compact 169×127×61 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

IPC121-2L4C-A1

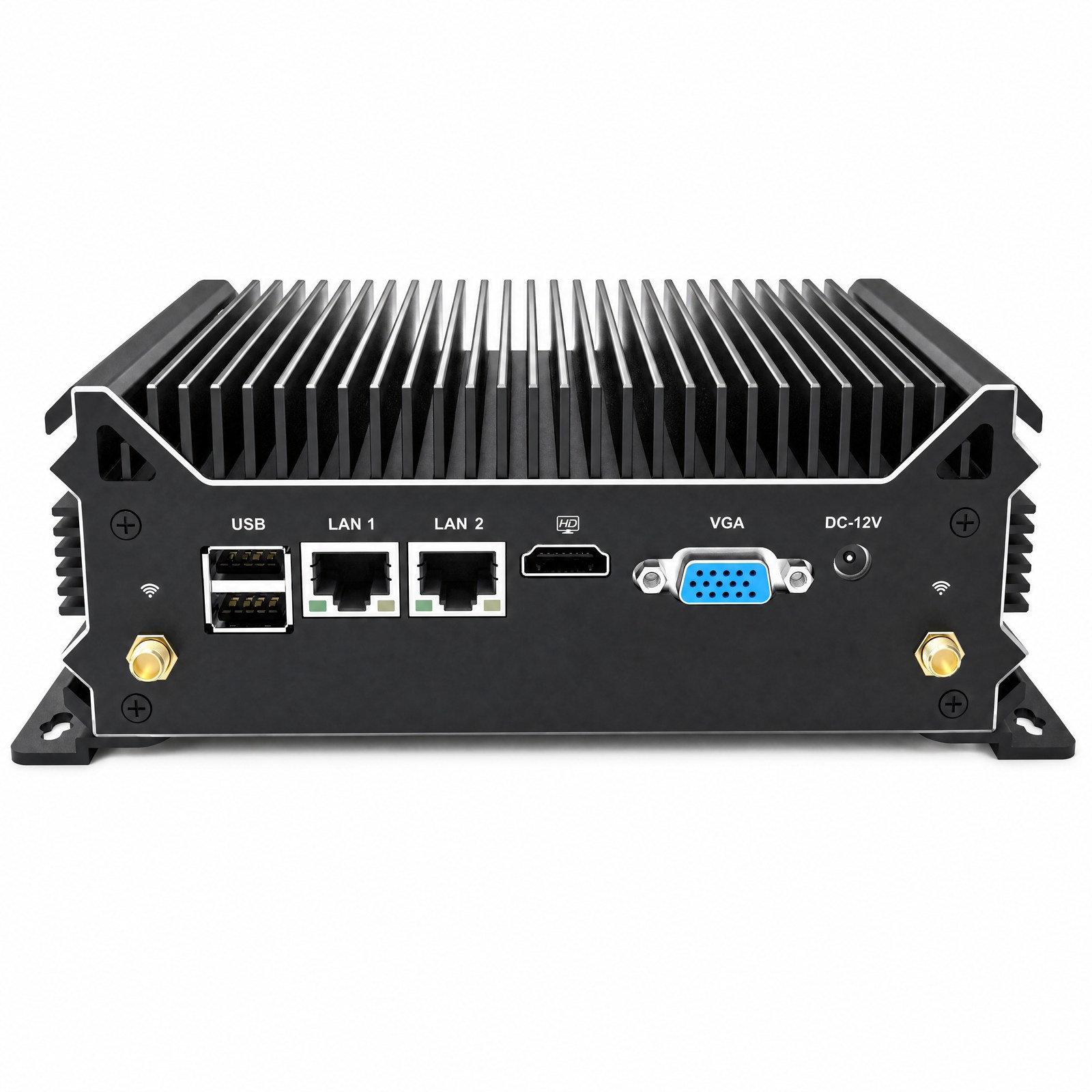

Front Rear
LAN Ports2*RTL8111H Gigabit Ethernet ports, support WOL, PXE boot
Memory1*D4-3200MHZ，Max 32GB
Dimensions169×127×61 mm
Temp Range-10℃~60℃ Storage: -20℃~70℃
Get a Quote →
Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

  • Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
  • 2*RTL8111H Gigabit Ethernet ports, — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
  • 4*DB9 — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
  • i3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u：1*D3L-1600MHZ，Max 8GB / J4125：1*D4-2666MHZ，Max 16GB / i3-8130u/i5-8250u/i7-8550u：1*D4-2133MHZ，Max 32GB / N5095：1*D4-2933MHZ，Max 32GB / J6412/N95/N97/N100/N150：1*D4-3200MHZ，Max 32GB.
  • 1*VGA, 1*HDMI, support synchronous and asynchronous dual display — dual independent display support.
  • J4105/J4125/N5095/i3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u/i3-8130u/i5-8250u/i7-8550u：4*USB3.0，2*USB2.0 / J6412/N95/N97/N100/N150：4*USB3.1，2*USB2.0 for high-speed peripherals.

Specifications

Processor (CPU)Compatible with multiple Intel processors: J4125/N5095/J6412/N95/N97/N100/N150/i3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u/i3-8130u/i5-8250u/i7-8550u
System Memoryi3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u：1*D3L-1600MHZ，Max 8GB / J4125：1*D4-2666MHZ，Max 16GB / i3-8130u/i5-8250u/i7-8550u：1*D4-2133MHZ，Max 32GB / N5095：1*D4-2933MHZ，Max 32GB / J6412/N95/N97/N100/N150：1*D4-3200MHZ，Max 32GB
Storage / Drive Baysi3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/J4125：1*MSATA / N5095/J6412/N95/N97/N100/N150/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u/i3-8130u/i5-8250u/i7-8550u：1*M.2 Key-M 2280（PCIe and SATA hard drive adaptive）
CoolingFanless ice thorn cooling
Supported OSWIN7/Win10/Linux/Ubuntu
Ethernet (LAN)2*RTL8111H Gigabit Ethernet ports, support WOL, PXE boot
Serial Ports (COM)4*DB9 serial ports (default RS232, RS485 signal configurable via jumper)
USB PortsJ4105/J4125/N5095/i3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u/i3-8130u/i5-8250u/i7-8550u：4*USB3.0，2*USB2.0 / J6412/N95/N97/N100/N150：4*USB3.1，2*USB2.0
Display Output1*VGA, 1*HDMI, support synchronous and asynchronous dual display
Expansion Slots1*MiniPcie slot (supports half and full size cards), supports WIFI/4G modules
Power InputN5095/J6412/N95/N97/N100/N150/i3-5005u/i5-4200u/i7-4600u/i5-5200u/i7-5500u/i3-6100u/i5-6200u/i7-6500u/i3-7100u/i5-7200u/i7-7500u/i3-8130u/i5-8250u/i7-8550u： / 1*DC 12V 55*25mm / J4105/J4125/N5095：1*DC 12V-19V 55*25mm
Operating Temperature-10℃~60℃ Storage: -20℃~70℃
Dimensions (L×W×H)169*127*61 mm

Applications

  • Factory Automation & SCADA — multi-port RS232/485 for PLC, CNC and robot controllers.
  • Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
  • Digital Signage & Kiosk — compact size, silent operation, dual displays.
  • Network Security & NVR — reliable multi-LAN appliance platforms.

Built-to-Order Options

  • Memory: capacity configured at RFQ (see specifications for max).
  • Storage: M.2 NVMe / SATA SSD / mSATA capacity per RFQ.
  • Serial: COM ports factory-configured to RS485 / RS422 / TTL on request.
  • Wireless: Mini-PCIe / M.2 4G/5G and Wi-Fi + Bluetooth options.
  • OS: Windows 10/11, Ubuntu, Debian, CentOS pre-install available.
