IPC122-2L6C10U-A1 — Fanless Industrial PC

Fanless 2× Gigabit Ethernet · 6× serial COM ports · -20~60°C wide temperature — compact 195×127×62 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

IPC122-2L6C10U-A1

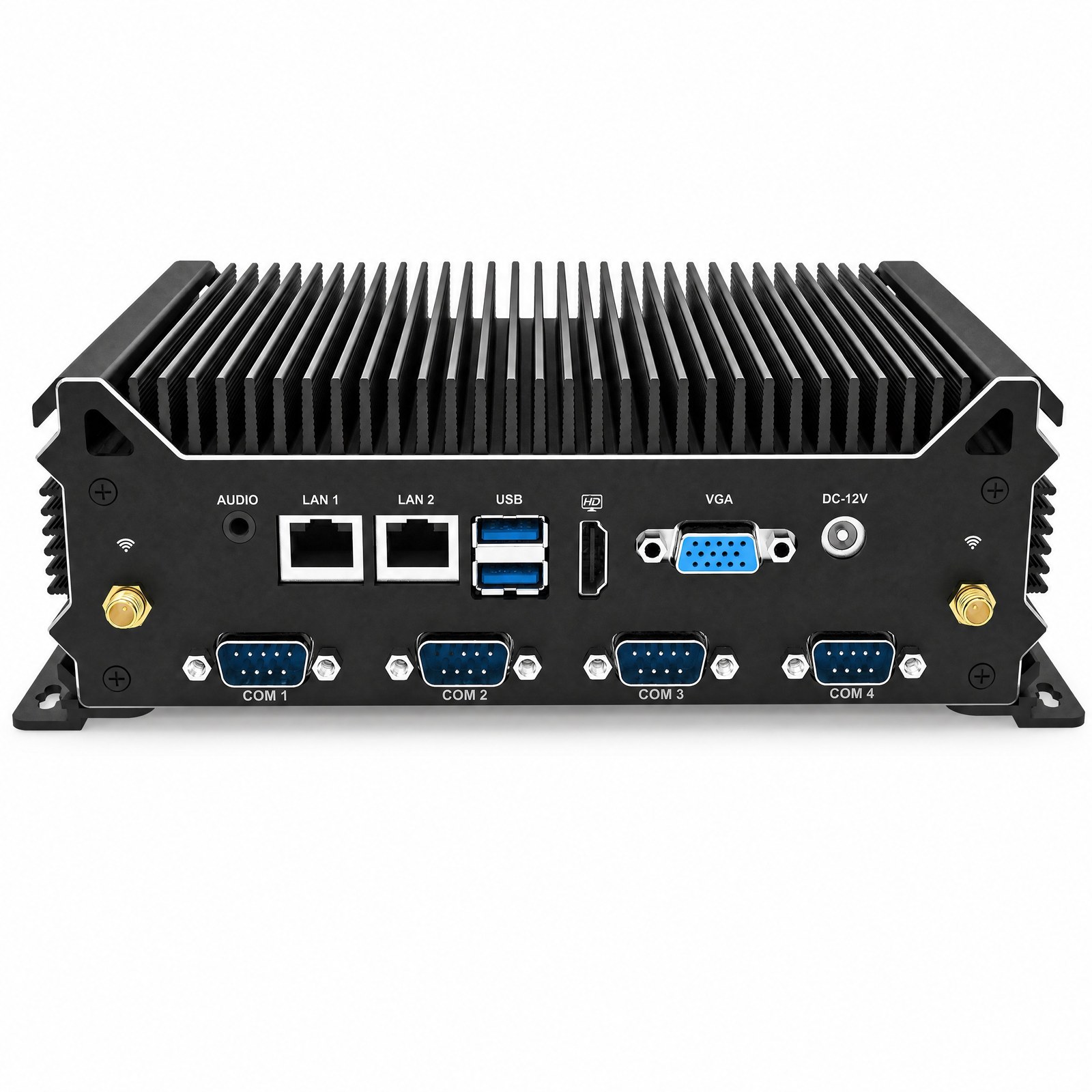

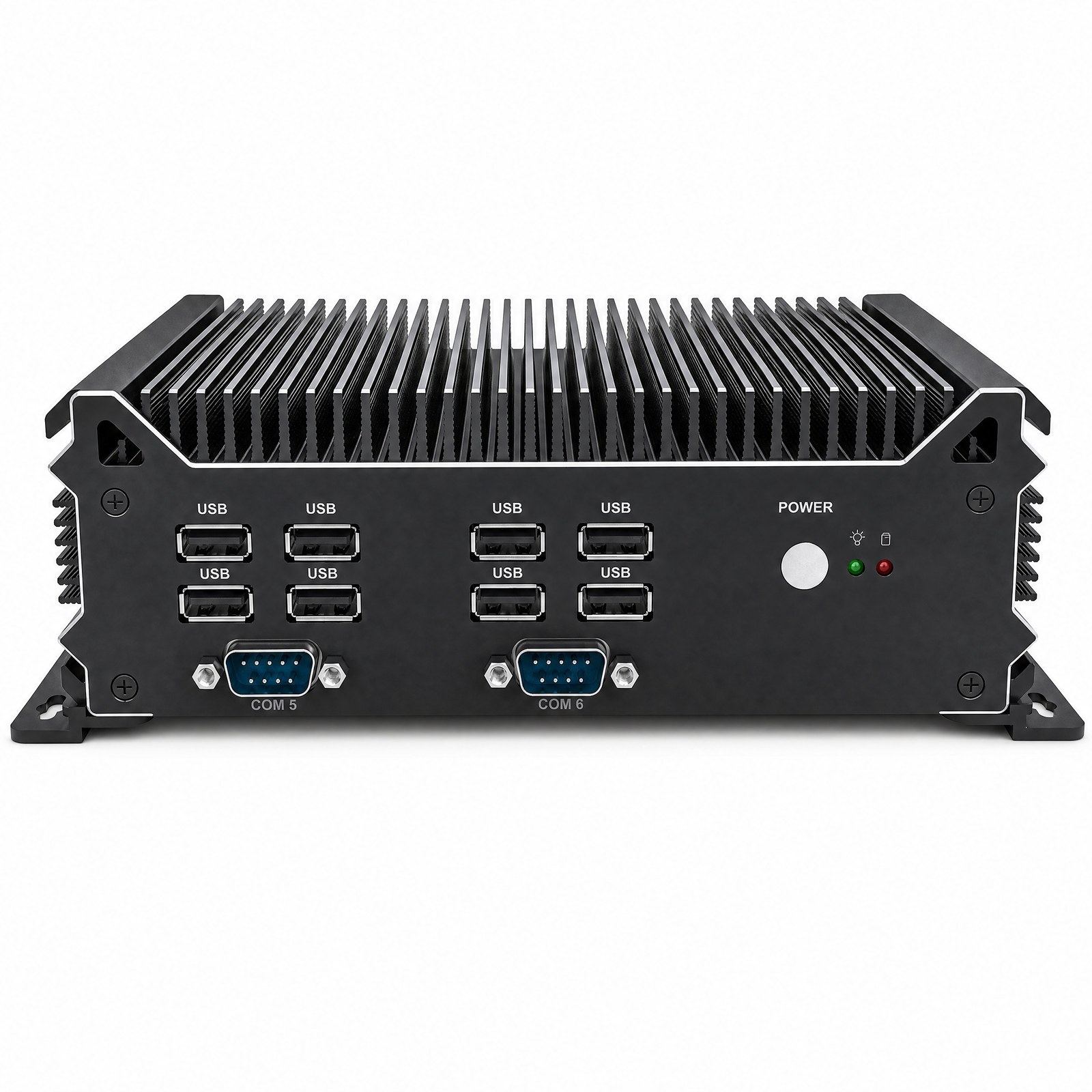

Front Rear
LAN Ports2*inte 226vNetwork port, supports WOL and PXE boot
Memory1*D4-2133MHz，Supports up to 32GB
Dimensions195×127×62 mm
Temp RangeOperating temperature: -10℃~60℃
Get a Quote →
Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

  • Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
  • 2*inte 226vNetwork port, — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
  • The 6*DB9 — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
  • J1900：1*D3L-1333Mhz / i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：1*D4-2133MHz，Supports up to 32GB.
  • 1*VGA, 1*HDMI, support synchronous and asynchronous dual display — dual independent display support.
  • J1900：1*USB 3.0+9*USB 2.0 / i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：2*USB 3.2(10Gbps)+8*USB 2.0 for high-speed peripherals.

Specifications

Processor (CPU)Compatible with multiple Intel processors：J1900/i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u
System MemoryJ1900：1*D3L-1333Mhz / i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：1*D4-2133MHz，Supports up to 32GB
Storage / Drive BaysJ1900/i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：1*Msata，1*2.5-inch SATA hard drive
CoolingFanless Ice Spike Cooling
Supported OSWin7/Win10/Linux/Ubuntu
Ethernet (LAN)2*inte 226vNetwork port, supports WOL and PXE boot
Serial Ports (COM)The 6*DB9 serial port is shipped with RS232 as the default, with COM1 supporting TTL signals, and COM2 and COM3 allowing RS485 signal settings through jumpers
USB PortsJ1900：1*USB 3.0+9*USB 2.0 / i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：2*USB 3.2(10Gbps)+8*USB 2.0
Display Output1*VGA, 1*HDMI, support synchronous and asynchronous dual display
Expansion Slots1*Mini PCIe, supports Wifi/4G/Bluetooth modules
Power InputJ1900：1*DC 12V-19V 55*25mm / i3-6100u/i5-6200u/i7-6500u/i5-7200u/i7-7600u：1*DC 12V 55*25mm
Operating TemperatureOperating temperature: -10℃~60℃ / Storage temperature: -20℃~70℃
Dimensions (L×W×H)195*127*62 mm

Applications

  • Factory Automation & SCADA — multi-port RS232/485 for PLC, CNC and robot controllers.
  • Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
  • Digital Signage & Kiosk — compact size, silent operation, dual displays.
  • Network Security & NVR — reliable multi-LAN appliance platforms.

Built-to-Order Options

  • Memory: capacity configured at RFQ (see specifications for max).
  • Storage: M.2 NVMe / SATA SSD / mSATA capacity per RFQ.
  • Serial: COM ports factory-configured to RS485 / RS422 / TTL on request.
  • Wireless: Mini-PCIe / M.2 4G/5G and Wi-Fi + Bluetooth options.
  • OS: Windows 10/11, Ubuntu, Debian, CentOS pre-install available.

Request a Quote — IPC122-2L6C10U-A1

Our engineering team replies within 1 business day with FOB Shenzhen pricing and lead time.

Tell us your CPU, memory, storage and interface requirements. Every unit is built-to-order from our Shenzhen factory.

✔ Direct factory pricing & OEM/ODM support
✔ Windows / Linux pre-install available
✔ Sample testing before bulk orders
