Home / Products / Mini Multi-LAN Series / IPC122-4L-A1

IPC122-4L-A1 — Fanless Industrial PC

Fanless 3× Gigabit Ethernet · 2× serial COM ports · -20~60°C wide temperature — compact 195×127×62 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

IPC122-4L-A1

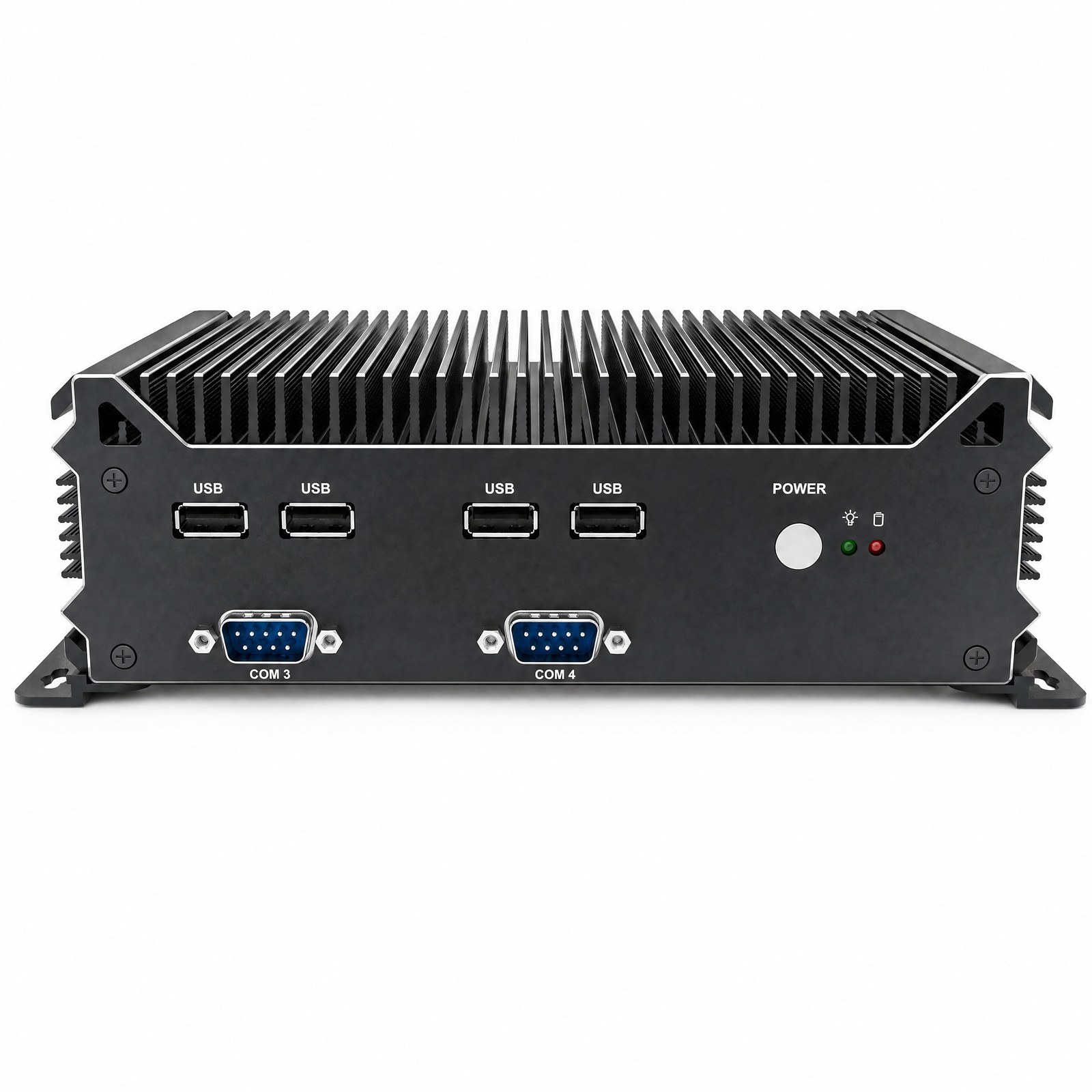

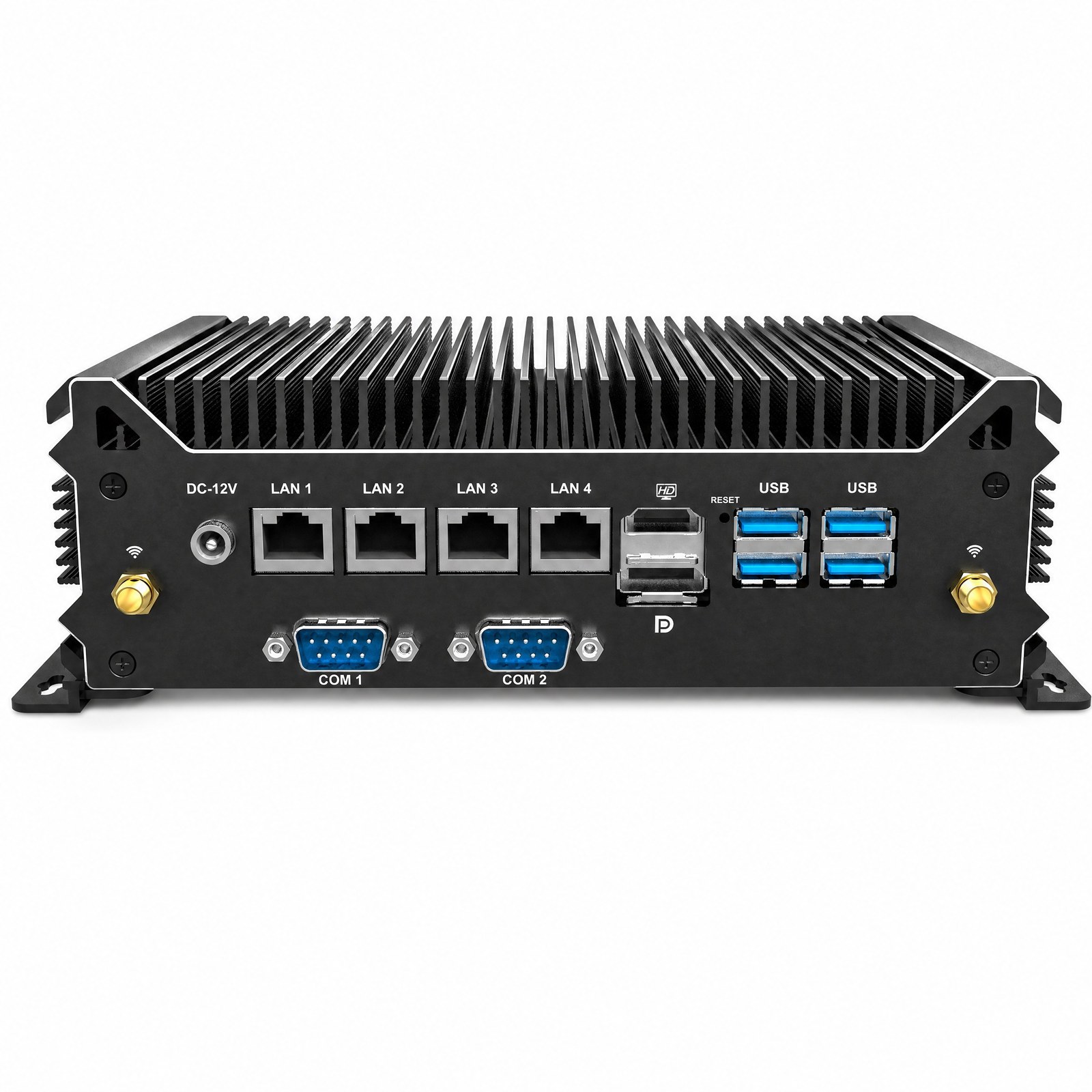

Front Rear
LAN Ports3*intel i210at+1*i226v Supports WOL and PXE boot
Memory1*D5-4800Mhz Supports up to 32GB
Dimensions195×127×62 mm
Temp RangeOperating temperature: -10℃~60℃
Get a Quote →
Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

  • Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
  • 3*intel i210at+1*i226v — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
  • 2* DB9 RS232 ports (COM1 supports TTL (optional); COM2/3 support)RS232/485 (optional) — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
  • 1*D5-4800Mhz Supports up to 32GB.
  • HDMI+DP dual display interface — dual independent display support.
  • 4*USB 3.0+4*USB 2.0 for high-speed peripherals.

Specifications

Processor (CPU)Compatible with multiple Intel processors：i3-1215u/i5-1235u/i7-1255u
System Memory1*D5-4800Mhz Supports up to 32GB
Storage / Drive Bays1*M.2 M Key, supports SATA/PCIE4.0x4 auto-negotiation; 1*SATA3.0 interface
CoolingFanless Ice Spike Cooling
Supported OSWin10/Linux/Ubuntu/Debian
Ethernet (LAN)3*intel i210at+1*i226v Supports WOL and PXE boot
Serial Ports (COM)2* DB9 RS232 ports (COM1 supports TTL (optional); COM2/3 support)RS232/485 (optional)
USB Ports4*USB 3.0+4*USB 2.0
Display OutputHDMI+DP dual display interface
Expansion Slots1*mPCIE slot, supporting WIFI, Bluetooth, or 4G module expansion; SIM card slot supports Nano-SIM (optional FPC socket)
Power InputDC 12-24V 55*25mm
Operating TemperatureOperating temperature: -10℃~60℃ / Storage temperature: -20℃~70℃
Dimensions (L×W×H)195*127*62 mm

Applications

  • PLC & Sensor Integration — serial ports for direct machine control.
  • Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
  • Digital Signage & Kiosk — compact size, silent operation, dual displays.
  • Network Security & NVR — reliable multi-LAN appliance platforms.

Built-to-Order Options

  • Memory: capacity configured at RFQ (see specifications for max).
  • Storage: M.2 NVMe / SATA SSD / mSATA capacity per RFQ.
  • Wireless: Mini-PCIe / M.2 4G/5G and Wi-Fi + Bluetooth options.
  • OS: Windows 10/11, Ubuntu, Debian, CentOS pre-install available.

Request a Quote — IPC122-4L-A1

Our engineering team replies within 1 business day with FOB Shenzhen pricing and lead time.

Tell us your CPU, memory, storage and interface requirements. Every unit is built-to-order from our Shenzhen factory.

✔ Direct factory pricing & OEM/ODM support
✔ Windows / Linux pre-install available
✔ Sample testing before bulk orders
