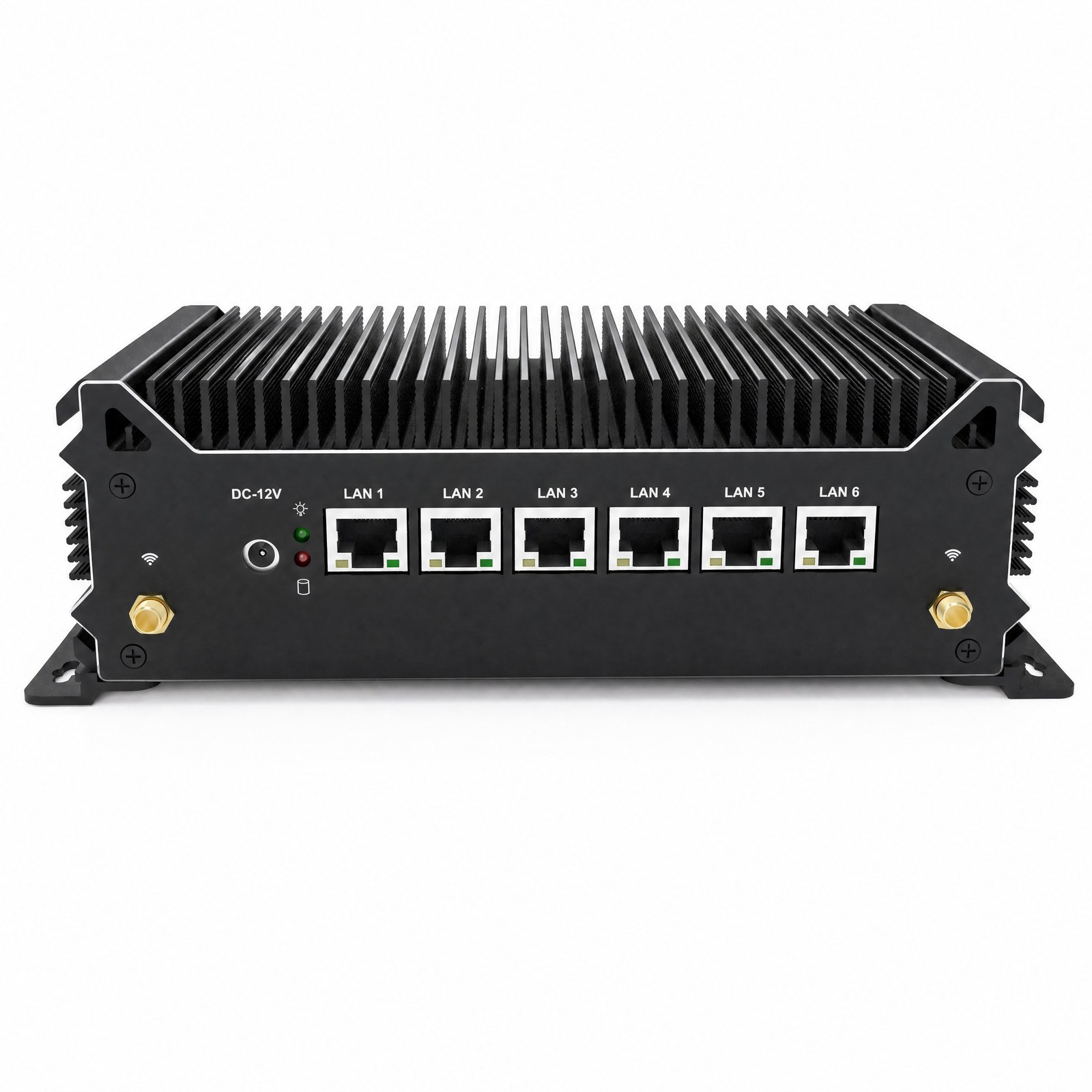

IPC122-6L-A2 — Fanless Industrial PC

Fanless 6× Gigabit Ethernet · -20~60°C wide temperature — compact 195×110×62 mm industrial box PC for 24/7 deployment.

OS compatible: pfSense · OPNsense · OpenWrt · RouterOS (x86) · Windows · Linux

LAN Ports6*intel i211at Supports WOL and PXE boot

Memory1* DDR4-2133MHz memory slots, supporting

Dimensions195×110×62 mm

Temp RangeOperating temperature: -10℃~60℃

Prices, MOQ and lead time available on request — contact leo@botoipc.com.

Key Features

Truly fanless fin-stack heat sink — zero moving parts, silent and dust-resistant for 24/7 industrial operation.
6*intel i211at — Wake-on-LAN and PXE boot ready for networked gateways and machine vision.
1* CISCO standard RS232 — direct integration with PLC, CNC, sensors and SCADA (RS485/422 options where supported).
1* DDR4-2133MHz memory slots.

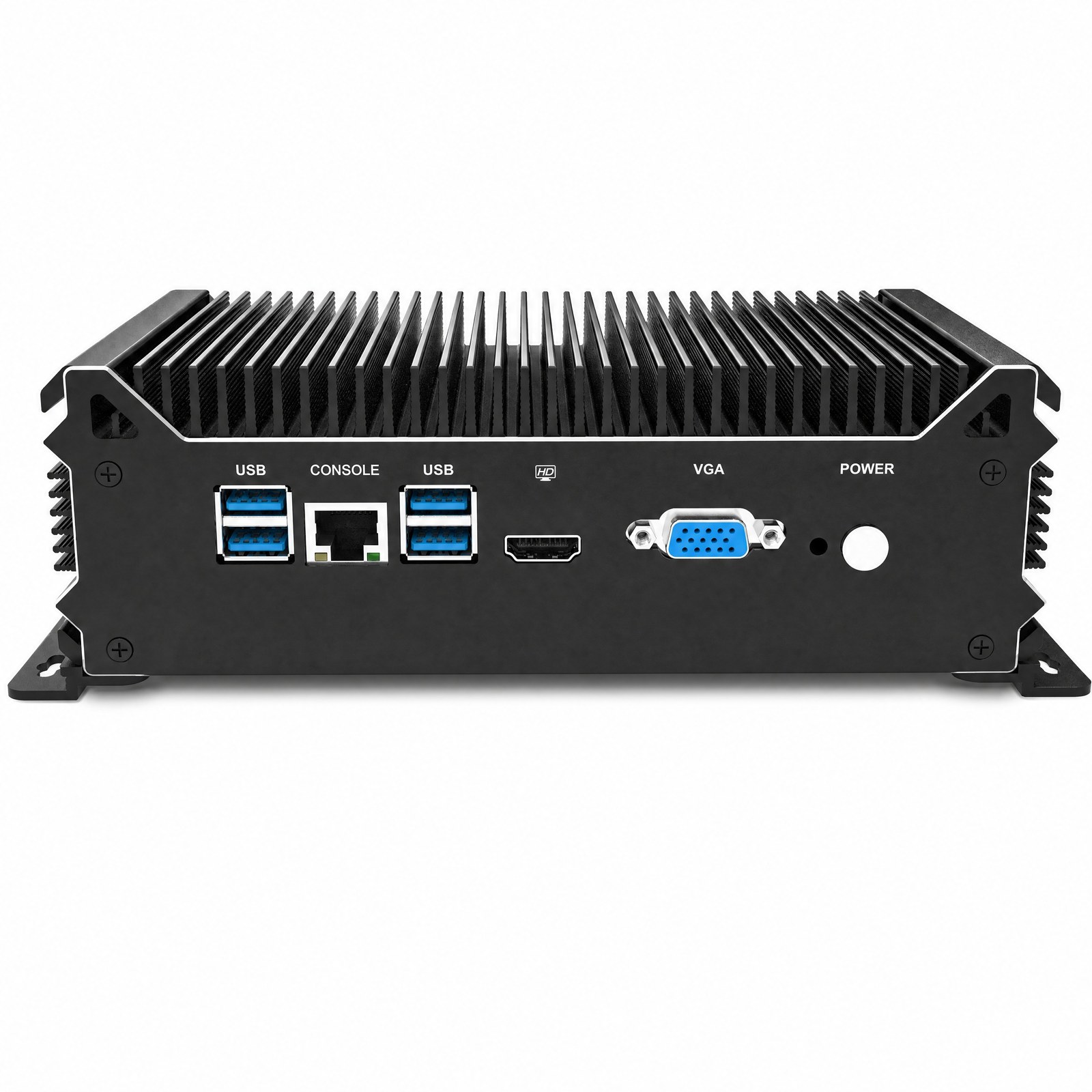

1* HDMI / 1*VGA — dual independent display support.
4*USB 3.0 for high-speed peripherals.

Processor (CPU)	Compatible with multiple Intel processors：4405u/6100u/6200u/6500u
System Memory	1* DDR4-2133MHz memory slots, supporting up to 32GB,
Storage / Drive Bays	1*Msata，It can support MSATA SSD
Cooling	Fanless Ice Spike Cooling
Supported OS	Win10/Linux/Ubuntu/Debian
Ethernet (LAN)	6*intel i211at Supports WOL and PXE boot
Serial Ports (COM)	1* CISCO standard RS232 serial interface
USB Ports	4*USB 3.0
Display Output	1* HDMI / 1*VGA
Expansion Slots	1*mPCIE, supports WIFI/4G/3G Module
Power Input	DC 12V 55*25mm
Operating Temperature	Operating temperature: -10℃~60℃ / Storage temperature: -20℃~70℃
Dimensions (L×W×H)	19511062 mm

Machine Vision & Multi-Camera — multiple GigE ports drive cameras without an extra switch.
PLC & Sensor Integration — serial ports for direct machine control.
Edge Computing & IoT Gateway — fanless 24/7 deployment at the edge.
Digital Signage & Kiosk — compact size, silent operation, dual displays.
Network Security & NVR — reliable multi-LAN appliance platforms.
